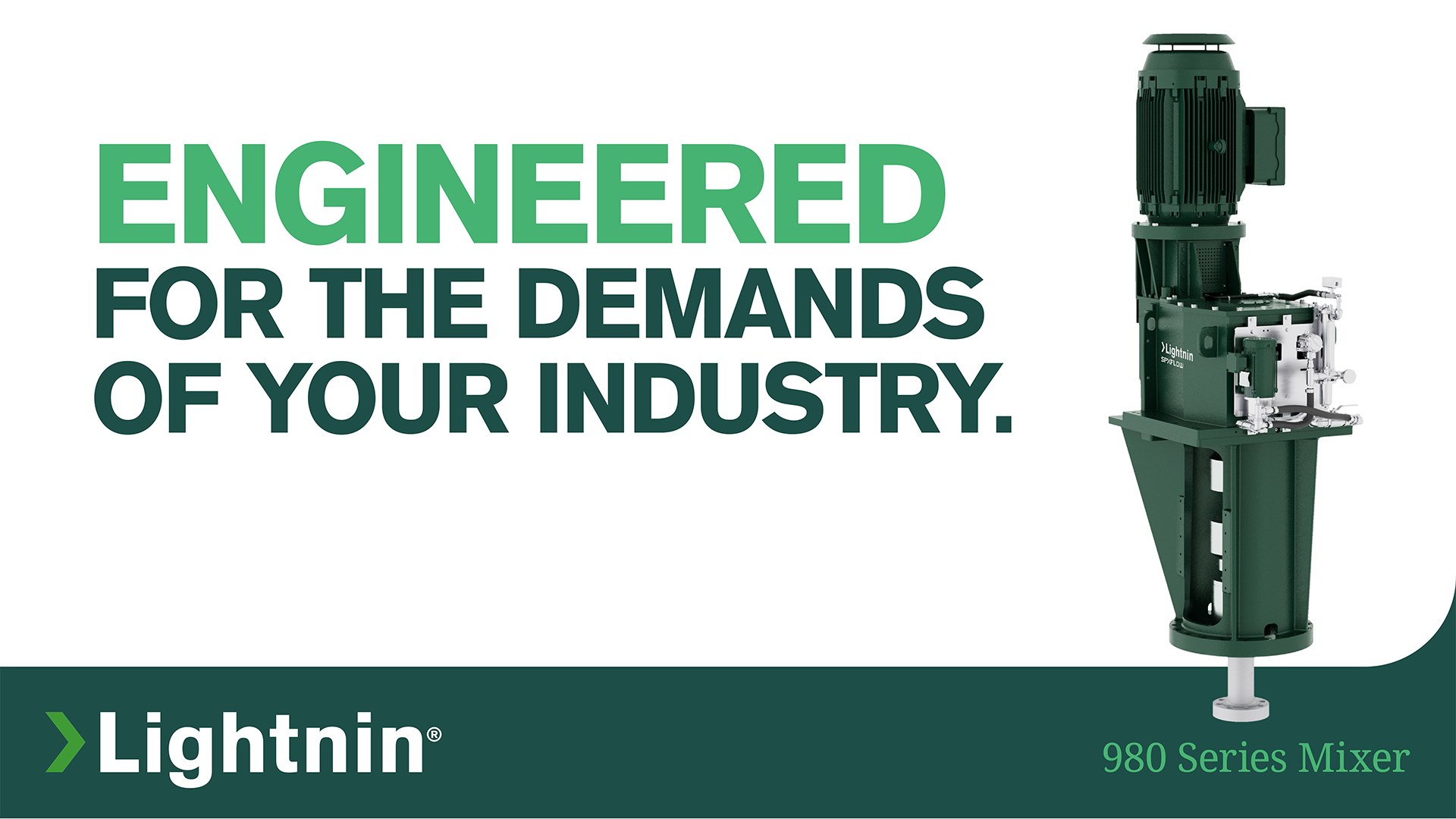

LIGHTNIN_981 MIXER_1920x1080_ENGINEERED

Introducing the Lightnin 980 Series Mixer

The chemical and mining industries are tough. The equipment you use must perform in some of the harshest environments on earth. That’s exactly why you want Lightnin® 980 Series Mixers. Designed to perform under duress, the 980 Series is flexible, versatile, tough and features true dry well construction.

Superior Performance for Critical Applications

The 980 Series is built for heavy-duty mixing tasks, including high-pressure acid leach (HPAL) and autoclave applications in mining, as well as medium to large reactors in the chemical industry. Whether for the petrochemical, refinery, or specialty chemicals sectors, the Lightnin 980 Series is engineered for optimal performance, safety and compliance.

Applications:

  • Inorganic Chemicals
  • Petrochemicals
  • Refinery
  • Solvents & Solutions
  • Specialty Chemicals

Industries Served:

  • Chemical
  • Mining
  • Oil & Gas

Request More Information

Tough. Versatile. Loaded with Features.

  • Maximized Performance: Power range of 90 to 200 kW (125 to 300 HP) and a speed range of 45 to 125 RPM, down to 25 RPM with the 8-pole motor configuration.

  • Compact and Efficient Design: The parallel drive configuration reduces the footprint and complexity of the installation for flexibility in a range of tank sizes and types.

  • Durable and Reliable Construction: True drywell design ensures zero lubrication leakage - protecting product integrity and reducing maintenance.

  • Advanced Safety Certifications: XP & ATEX certifications for safe operation in standard and hazardous environments.

  • High-Quality Gearing: Helical gears designed to AGMA standards for quieter operation and extended gear life.

  • Maintenance Simplified: Integrated lubrication system with flow switch protection minimizes downtime and reduces operational costs.

  • IsoLoad™ Technology: Isolates the gearing from axial and bending loads, maximizing gear and seal life.

This is Mixer Technology on Another Level

The advanced parallel drive gearboxes ensure unmatched reliability and efficiency, and the modular design means seamless integration with existing systems and flexibility to meet constantly evolving operational demands. Plus, we have more than 100 years’ experience in mixer excellence.

    •
LGT_981_Series_Cutaway_01

Key Specifications:

  • Power Range: 90 to 200 kW (125 to 300 HP)

  • Speed Range: 45 to 125 RPM, down to 25 RPM with 8-pole motor configuration

  • Drive Type: Parallel drive gearbox

  • Certifications: XP & ATEX for hazardous environments

  • Gear Design: Helical gears compliant with AGMA standards

  • Bearing Life: 100,000 hours L10 on the output shaft

  • Mounting Options: Suitable for both open and sealed tanks

GettyImages-156830490

Expand Your Capabilities with Custom Options

Lighnin knows that no two scenarios are the same. That’s why the 980 Series offers customization to ensure maximum efficiency for your unique needs. Our range of customizable features includes:

  • LightninLube™ Synthetic Gear Oils: Available in ISO 100, 150, 220, and 320 grades for enhanced performance and longevity.

  • External Lubrication System: Optional cooling and filtration systems for optimal lubrication management.

  • Mechanical Seal Options: The Lightnin S Seal Cartridge for high-pressure applications, easily removable without disassembling the gearbox or motor.

  • Mounting Options: Flange and pedestal mounting with customizable dimensions (ANSI, DIN, or special).

  • Motor Compatibility: Options for IEC or NEMA motors with various regional voltage requirements.

For more information and to explore how the Lightnin 980 Series can enhance your operations, contact us today or visit our website.

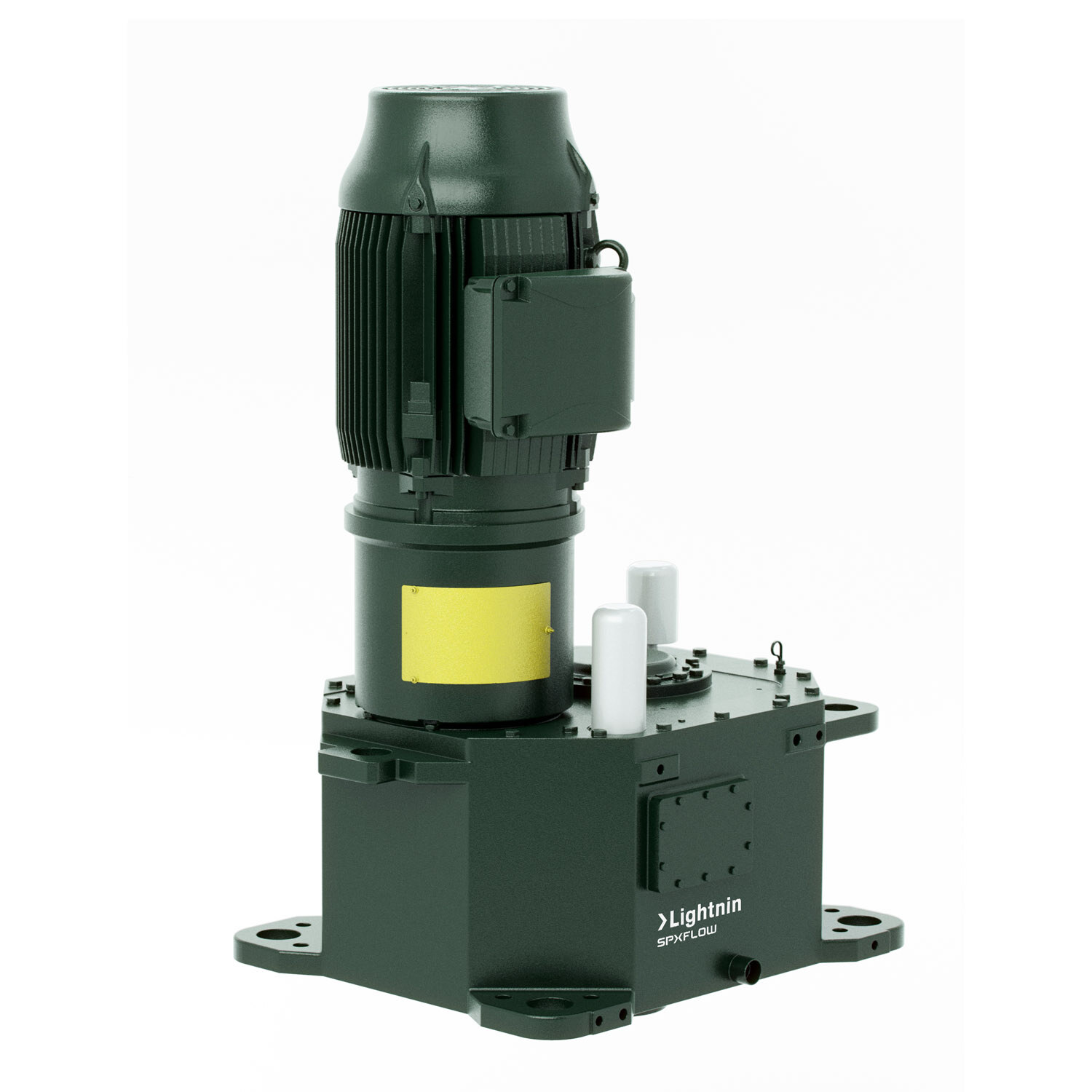

LGT_980 Series_01

Contact Us Today

Reach out to SPX FLOW today to discuss your needs and discover how our experience can help you achieve the results you need.
